The Short Version
- 5×114.3 with a 60 mm hub bore on every Crown Athlete grade we checked — naturally aspirated, turbo Athlete V, Athlete V Premium, and the Estate wagon.
- That is the same hub as the Crown Majesta. Confirmed rather than assumed, and it means wheels swap between them.
- Offset is +50 across the range. What changes is width and diameter.
- Import warning: most of the JZS171 range is not yet US-eligible. Only cars built through August 2001 qualify.
Factory Specification
| Grade | Chassis | Period | Front | Rear | PCD / Holes / Bore |
|---|---|---|---|---|---|
| Athlete V (1JZ-GTE turbo) | GH-JZS171 | 2000.04–2001.08 | 16×6.5J +50, 205/55R16 | 16×7.5J +50, 225/50R16 | 114.3 / 5 / 60 |
| 2.5 Athlete (NA) | TA-JZS171 | 2001.08–2003.12 | 16×6.5J +50, 215/55R16 | same as front | 114.3 / 5 / 60 |
| Athlete V Premium (turbo) | GH-JZS171 | 2002.08–2003.12 | 17×7J +50, 215/45R17 | 17×7.5J +50, 225/45R17 | 114.3 / 5 / 60 |
| Estate Athlete V (wagon) | GH-JZS171W | 2001.08–2002.10 | 16×6.5J +50, 205/55R16 | 16×7.5J +50, 225/50R16 | 114.3 / 5 / 60 |
Yes, It Matches the Majesta
Our Crown Majesta guide found 5×114.3 with a 60 mm bore across every Majesta generation. The ordinary Crown and the Crown Athlete are the same — same pattern, same register.
That is worth knowing because the Majesta is the more expensive car and its factory wheels are correspondingly nicer. They bolt to an Athlete. So do Celsior and LS400 wheels, which share the same 5×114.3 / 60 mm combination.

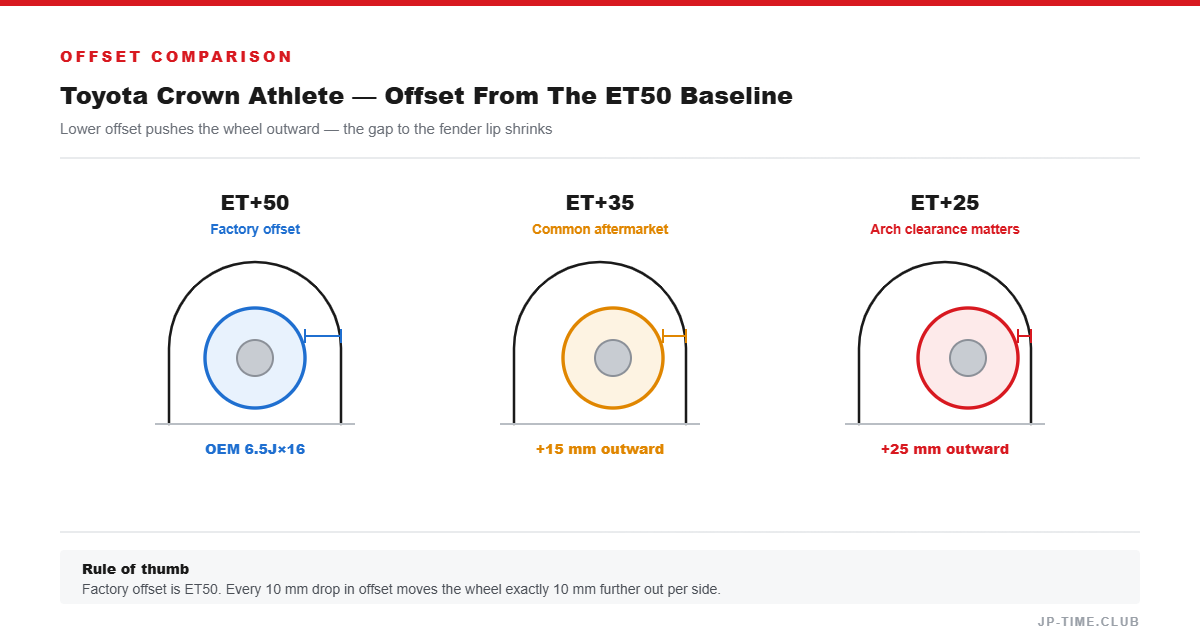

The thing to check is offset, not fitment. The Athlete sits at +50. A Majesta of the same era also sits at +50, but an S200 Majesta is at +39 and a Celsior at +45. All will bolt on and they will sit in three different places.
The Turbo Cars Are Staggered
The Athlete V and Athlete V Premium run a wider rear wheel — 7.5J against the front’s 6.5J on the 16-inch cars, and 7.5J against 7J on the 17-inch Premium. Offset stays at +50 at both ends, so the extra width goes outboard.
The naturally aspirated 2.5 Athlete is square at 16×6.5J +50. The Estate wagon follows the Athlete V’s staggered pattern exactly — there is no wagon-specific fitment.
Importing: Read This Carefully
The JZS171 ran from 1999 to 2003, which straddles the 25-year line awkwardly. As of now, only cars built through August 2001 are eligible.
That means the Athlete V (2000.04–2001.08) is importable today, and the Athlete V Premium (2002.08 onward) is not — it becomes eligible from August 2027. The 2.5 Athlete grade we list above starts in August 2001, right at the boundary, so its build plate decides.
If a broker offers you a Crown Athlete as legal on the strength of the model name, ask for the build month.
Sizing
The Crown Athlete is a VIP-adjacent car overseas and most builds go bigger and lower. From a +50 baseline, 18×8J to 19×9J in the +25 to +40 range is the common territory. 60 mm hub rings will be needed with most aftermarket wheels.
What We Could Not Verify
- Production dates for the Athlete VX turbo grade, which we found but did not open.
- The naturally aspirated Estate Athlete wagon. Its page exists; we did not fetch it, so its figures are inferred from a consistent pattern rather than sourced.
